How to Set Up Virtual Clusters

What is Hived Scheduler and How to Configure it

HiveD is a standalone component of OpenPAI, designed to be a Kubernetes Scheduler Extender for Multi-Tenant GPU clusters. A multi-tenant GPU cluster assumes multiple tenants (teams) share the same GPU pool in a single physical cluster (PC) and provides some resource guarantees to each tenant. HiveD models each tenant as a virtual cluster (VC), so that one tenant can use its own VC as if it is a private cluster, while it can also use other VCs' free resource at lower priority.

Before we start, please read this doc to learn how to write hived scheduler configuration.

Set Up Virtual Clusters

In services-configuration.yaml, there is a section for hived scheduler, for example:

# services-configuration.yaml
...
hivedscheduler:
  config: |
    physicalCluster:
      skuTypes:
        DT:
          gpu: 1
          cpu: 5
          memory: 56334Mi
      cellTypes:
        DT-NODE:
          childCellType: DT
          childCellNumber: 4
          isNodeLevel: true
        DT-NODE-POOL:
          childCellType: DT-NODE
          childCellNumber: 3
      physicalCells:
      - cellType: DT-NODE-POOL
        cellChildren:
        - cellAddress: worker1
        - cellAddress: worker2
        - cellAddress: worker3
    virtualClusters:
      default:
        virtualCells:
        - cellType: DT-NODE-POOL.DT-NODE
          cellNumber: 3
...

If you have followed the installation guide, you would find similar setting in your services-configuration.yaml. The detailed explanation of these fields are in the hived scheduler document. You can update the configuration and set up virtual clusters. For example, in the above settings, we have 3 nodes, worker1, worker2 and worker3. They are all in the default virtual cluster. If we want to create two VCs, one is called default and has 2 nodes, the other is called new and has 1 node, we can first modify services-configuration.yaml:

# services-configuration.yaml
...
hivedscheduler:
  config: |
    physicalCluster:
      skuTypes:
        DT:
          gpu: 1
          cpu: 5
          memory: 56334Mi
      cellTypes:
        DT-NODE:
          childCellType: DT
          childCellNumber: 4
          isNodeLevel: true
        DT-NODE-POOL:
          childCellType: DT-NODE
          childCellNumber: 3
      physicalCells:
      - cellType: DT-NODE-POOL
        cellChildren:
        - cellAddress: worker1
        - cellAddress: worker2
        - cellAddress: worker3
    virtualClusters:
      default:
        virtualCells:
        - cellType: DT-NODE-POOL.DT-NODE
          cellNumber: 2
      new:
        virtualCells:
        - cellType: DT-NODE-POOL.DT-NODE
          cellNumber: 1
...

After modification, use the following commands to apply the settings:

./paictl.py service stop -n rest-server hivedscheduler
./paictl.py config push -p <config-folder> -m service
./paictl.py service start -n hivedscheduler rest-server

You can now test the default VC and new VC, with any admin accounts in OpenPAI. Next section will introduce how to grant VC access to non-admin users.

How to Grant VC to Users

Admin users have access to all VCs. Thus, if you set up a new VC, you can use an admin account to test it. For non-admin users, administrators should grant VC access to them manually. The specific way depends on authentication mode of your cluster.

In Basic Authentication Mode

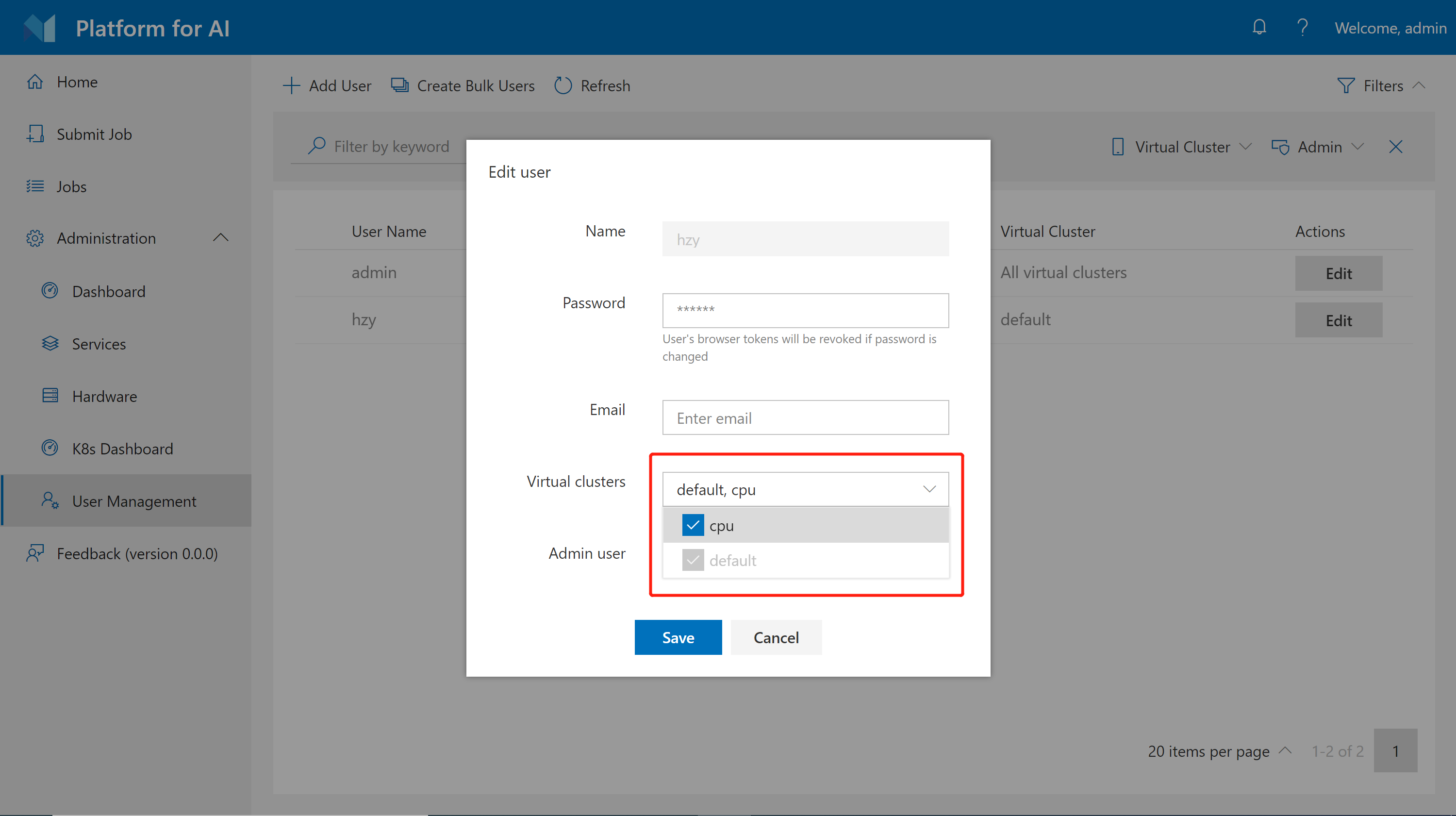

In basic authentication mode, administrators can grant VC access to users on the User Management page. First, click Edit on the page. Then you can configure VC access permission for each user as follows.

Please note you cannot revoke default VC from users.

In AAD Mode

Users are grouped by the AAD service in AAD mode. You should assign VC access to each group.

First, find the following section in your services-configuration.yaml:

# services-configuration.yaml
...
group-manager:
  ...
  grouplist:
    - groupname: group1
      externalName: sg1
      extension:
        acls:
          admin: false
          virtualClusters: ["vc1"]
          storageConfigs: ["azure-file-storage"]
    - groupname: group2
      externalName: sg2
      extension:
        acls:
          admin: false
          virtualClusters: ["vc1", "vc2"]
          storageConfigs: ["nfs-storage"]
...

This should be self-explanatory. The virtualClusters field is used to manage VC access for different groups. Use the following commands to apply your configuration change:

./paictl.py service stop -n rest-server
./paictl.py config push -p <config-folder> -m service
./paictl.py service start -n rest-server

Different Hardwares in Worker Nodes

We recommend one VC should have the same hardware, which leads to one skuType of one VC in the hived scheduler setting. If you have different types of worker nodes (e.g. different GPU types on different nodes), please configure them in different VCs. Here is an example of 2 kinds of nodes:

hivedscheduler:
  config: |
    physicalCluster:
      skuTypes:
        K80:
          gpu: 1
          cpu: 5
          memory: 56334Mi
        V100:
          gpu: 1
          cpu: 8
          memory: 80000Mi
      cellTypes:
        K80-NODE:
          childCellType: K80
          childCellNumber: 4
          isNodeLevel: true
        K80-NODE-POOL:
          childCellType: K80-NODE
          childCellNumber: 2
        V100-NODE:
          childCellType: V100
          childCellNumber: 4
          isNodeLevel: true
        V100-NODE-POOL:
          childCellType: V100-NODE
          childCellNumber: 3
      physicalCells:
      - cellType: K80-NODE-POOL
        cellChildren:
        - cellAddress: k80-worker1
        - cellAddress: k80-worker2
      - cellType: V100-NODE-POOL
        cellChildren:
        - cellAddress: v100-worker1
        - cellAddress: v100-worker2
        - cellAddress: v100-worker3
    virtualClusters:
      default:
        virtualCells:
        - cellType: K80-NODE-POOL.K80-NODE
          cellNumber: 2
      V100:
        virtualCells:
        - cellType: V100-NODE-POOL.V100-NODE
          cellNumber: 3

In the above example, we set up 2 VCs: default and v100. The default VC has 2 K80 nodes, and V100 VC has 3 V100 nodes. Every K80 node has 4 K80 GPUs and Every V100 nodes has 4 V100 GPUs.
