Basic Management Operations

Management on Webportal

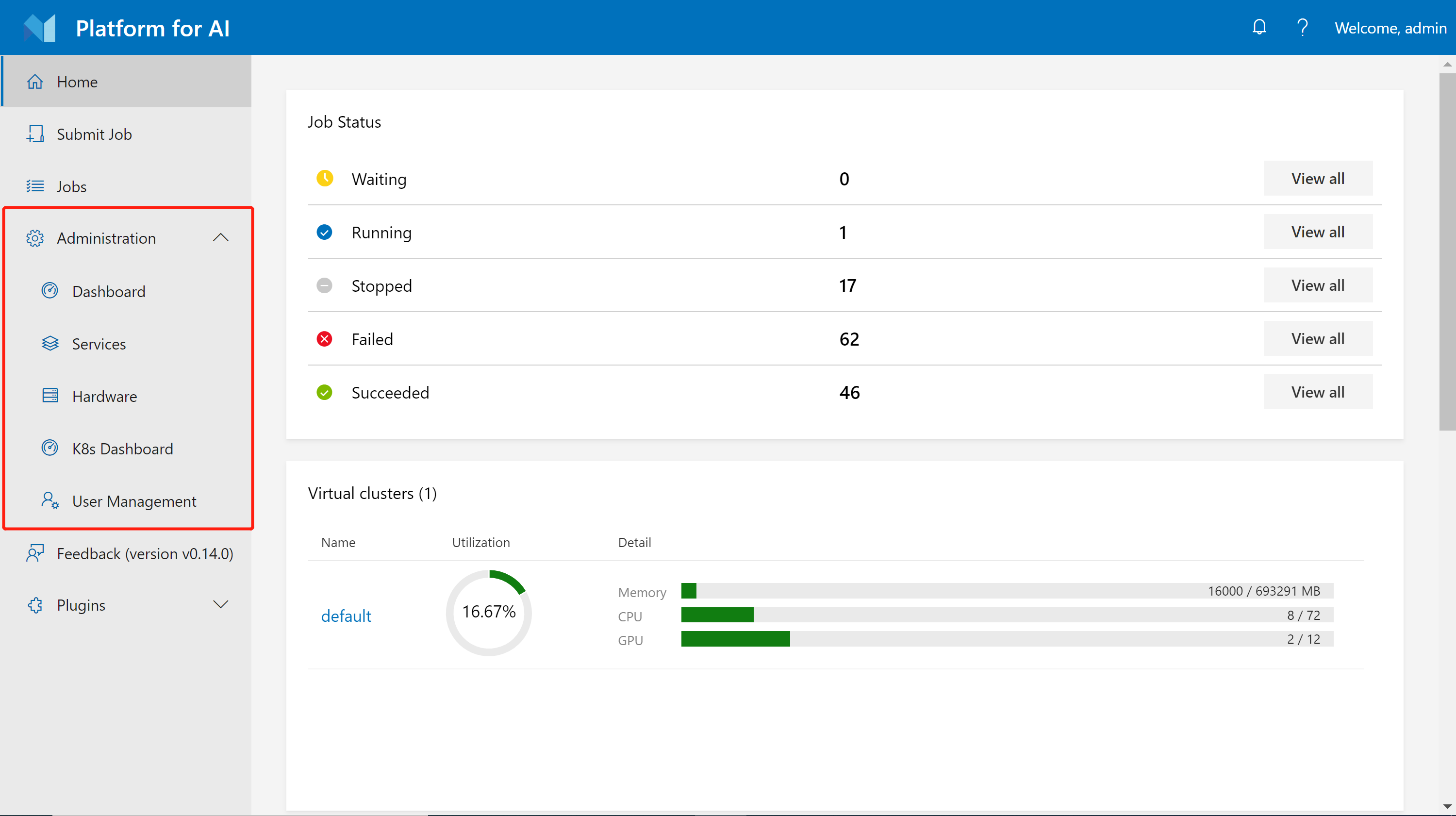

The webportal provides some basic administration functions. If you log in to it as an administrator, you will find several buttons about administration on the left sidebar, as shown in the following image.

Most of these functions are easy to understand. We will go through them quickly in this section.

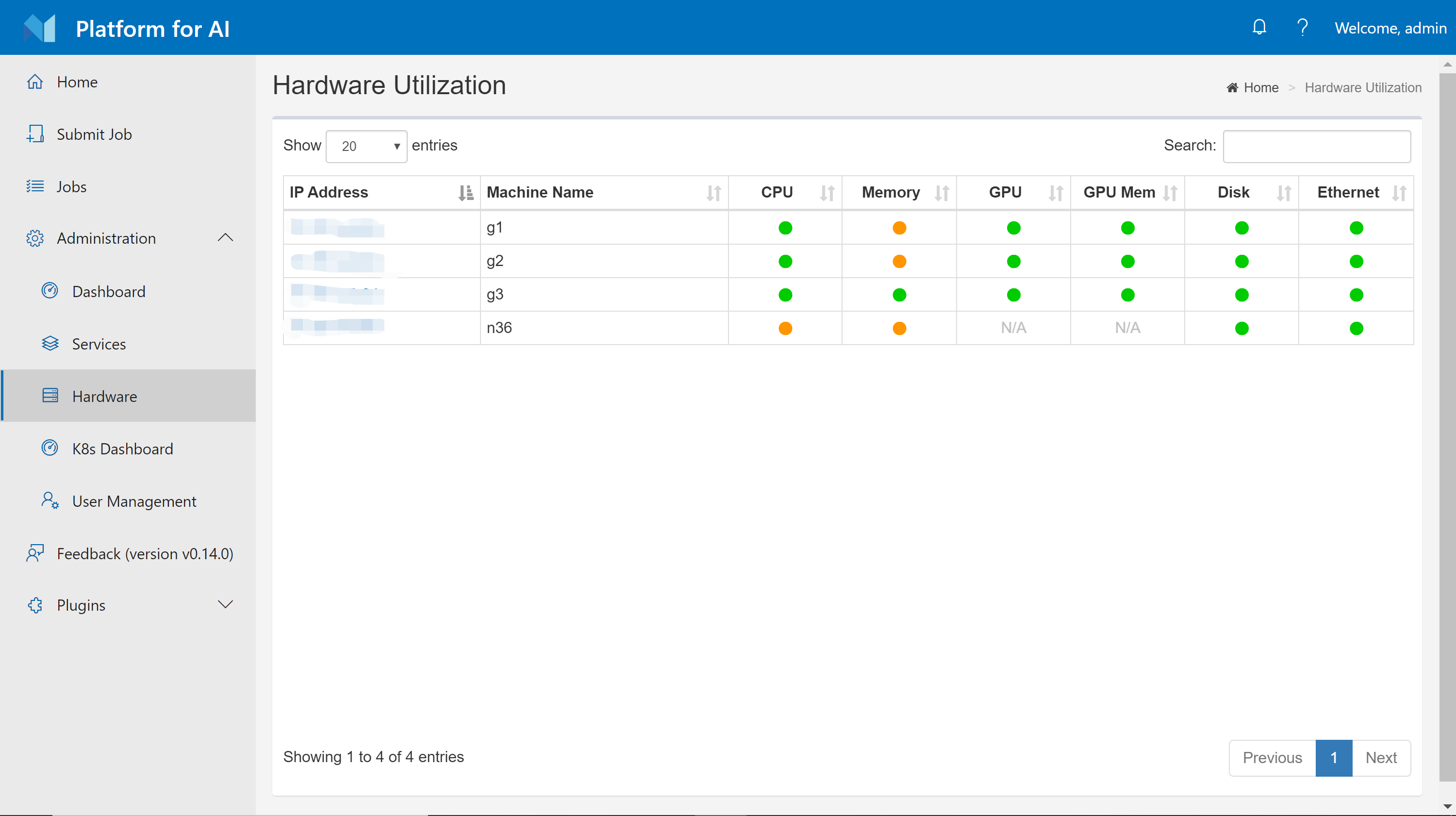

Hardware Utilization Page

The hardware page shows the CPU, GPU, memory, disk, network utilization of each node in your cluster. The utilization is shown in different color basically. If you hover your mouse on these colored circles, exact utilization percentage will be shown.

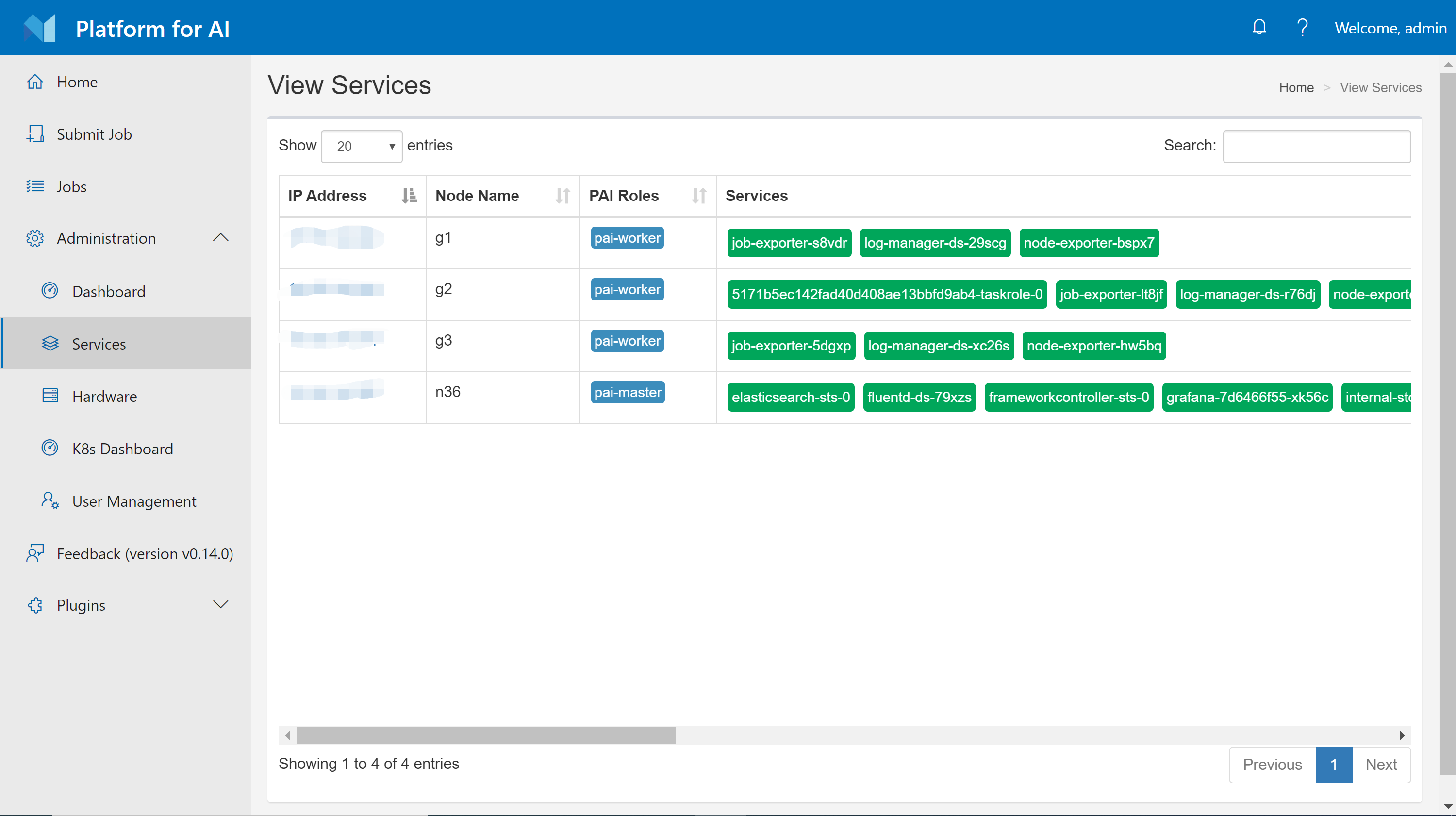

Services Page

The services page shows OpenPAI services deployed in Kubernetes. These services are daemonset, deployment, or stateful sets.

User Management

The user management page lets you create, modify, and delete users. Users have two types: non-admin users and admin users. You can choose which type to create. This page only shows up when OpenPAI is deployed in basic authentication mode, which is the default mode. If your cluster uses AAD to manage users, this page won't be available to you.

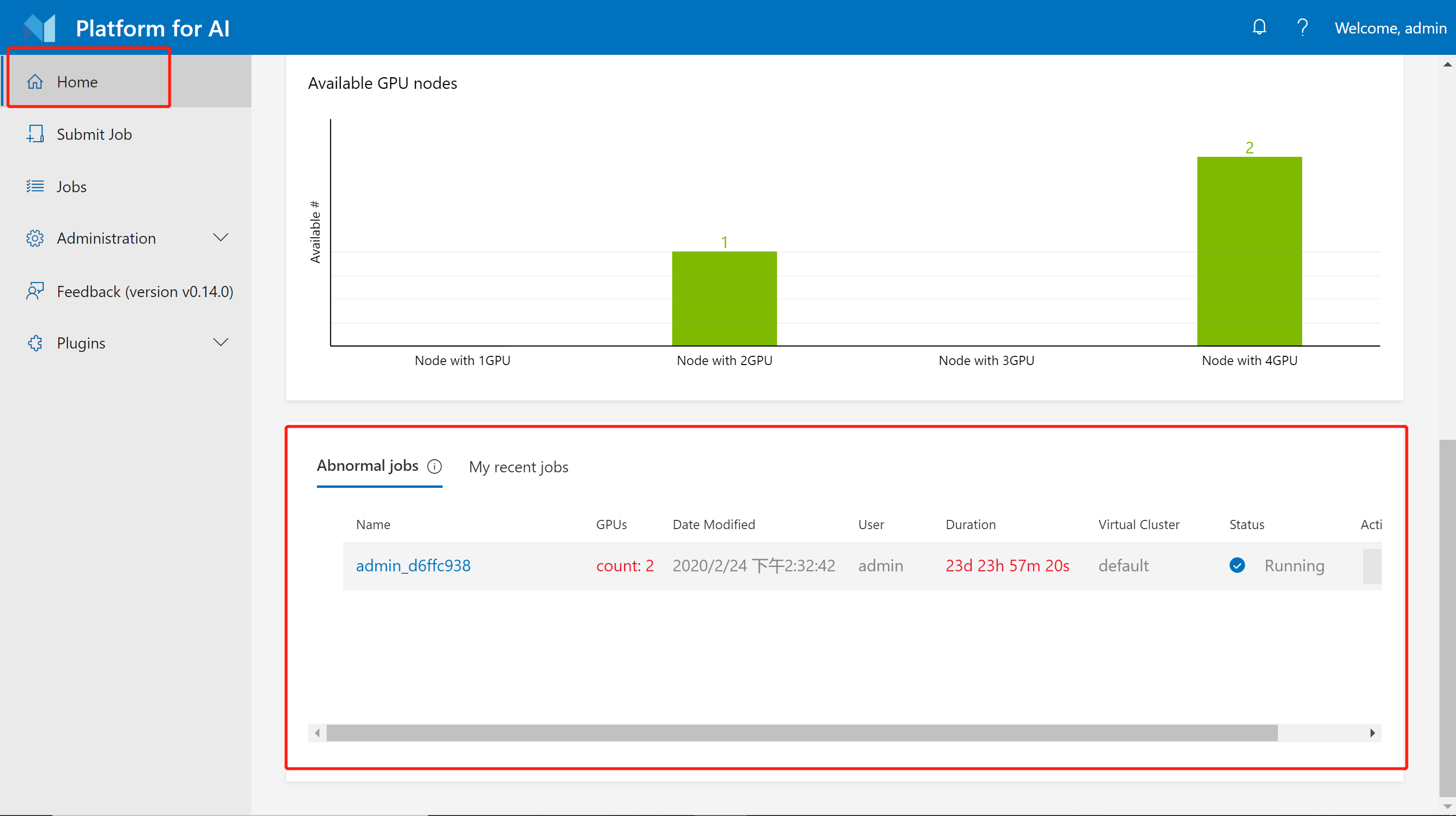

Abnormal Jobs

On the homepage, there is an abnormal jobs section for administrators. A job is treated as an abnormal job if it runs more than 5 days or GPU usage is lower than 10%. You can choose to stop some abnormal jobs if you desire so.

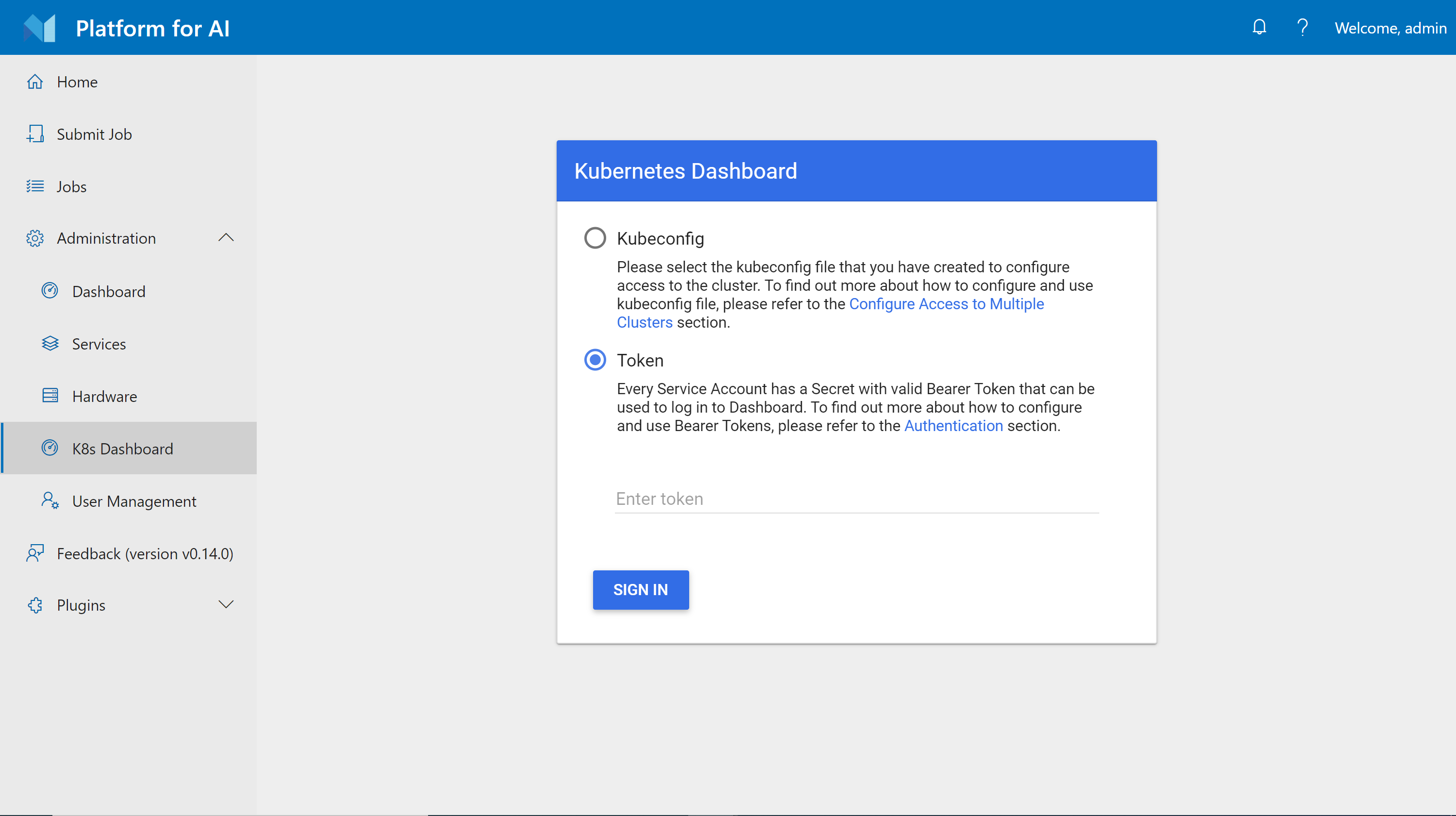

Access Kubernetes Dashboard

There is a shortcut to k8s dashboard on the webportal. However, it needs special authentication for security issues.

To use it, you should first set up https access (Using http://<ip> won't work) for OpenPAI. Then, on the dev box machine, follow the steps below:

Step 1. Save following yaml text as admin-user.yaml

apiVersion: v1
kind: ServiceAccount
metadata:
  name: admin-user
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: admin-user
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: admin-user
  namespace: kube-system

Step 2. Run kubectl apply -f admin-user.yaml

Step 3. Run kubectl -n kube-system describe secret $(kubectl -n kube-system get secret | grep admin-user | awk '{print $1}'). It will print the token which can be used to login k8s-dashboard.

PAI Service Management and Paictl

Generally speaking, PAI services are daemon sets, deployments or stateful sets created by PAI system, running on Kubernetes. You can find them on the k8s dashboard and services page. For example, webportal is a PAI service which provides front-end interface, and rest-server is another one for back-end APIs.

All PAI services are configurable. If you have followed the installation-guide, you can find two files, layout.yaml and services-configuration.yaml, in folder ~/pai-deploy/cluster-cfg on the dev box machine. These two files are the default service configuration.

If the configuration is lost, retrieve them back by:

git clone https://github.com/microsoft/pai.git
cd pai
./paictl.py config pull -o ~/test

The command will ask you for the cluster id for confirmation. If you forget it, another command ./paictl.py config get-id will help you.

The layout.yaml and services-configuration.yaml will be written to ~/test after ./paictl.py config pull -o ~/test.

You might have noticed the ./paictl.py script. Actually it is a CLI tool to help manage your PAI services. Here are some usage examples of paictl:

# get cluster id
./paictl.py config get-id

# pull service config to a certain folder
./paictl.py config pull -o <config-folder>

# push service config to the cluster
./paictl.py config push -p <config-folder> -m service

# stop all PAI services
./paictl.py service stop

# start all PAI services
./paictl.py service start

# stop several PAI services
./paictl.py service stop -n <service-name-1> <service-name-2>

# start several PAI services
./paictl.py service start -n <service-name-1> <service-name-2>

If you want to change configuration of some services, please follow the steps of service stop, config push and service start.

For example, you can find the following section in your default services-configuration.yaml:

webportal:
  plugins:
  - id: submit-job-v2
    title: Submit Job v2
    uri: https://gerhut.github.io/store/submit-job-v2/plugin.js
  - id: marketplace
    title: Marketplace
    uri: https://gerhut.github.io/store/marketplace/plugin.js
  server-port: 9286

It is the configuration for webportal. Now let's change the title of one plugin: modify title: Marketplace to title: MyMarketplace, and save the file.

Use the following command to push the configuration and restart webportal:

./paictl.py service stop -n webportal
./paictl.py config push -p <config-folder> -m service
./paictl.py service start -n webportal

Then you will find the plugin title is changed:
